Jiadeli ES138PD panoramic floating sliding door, linear track, high-density hook, subverts perception

Sliding doors do not take up space, have a large opening area and good ventilation, so they are often installed on balconies. However, the waterproof and sealing performance of traditional sliding doors needs to be improved, and the area of ​​a single door is difficult to expand due to structural strength limitations. Through the unremitting efforts of the Jiadeli team, the technology has made a comprehensive breakthrough, and the subversive design of the track and hooks has been adopted, which greatly improves various performances and can achieve larger fan area and landscape, safety, landscape, vision, waterproofing, all aspects are covered, and everything is excellent. .

1. Revolutionary linear rail, stronger weatherproof

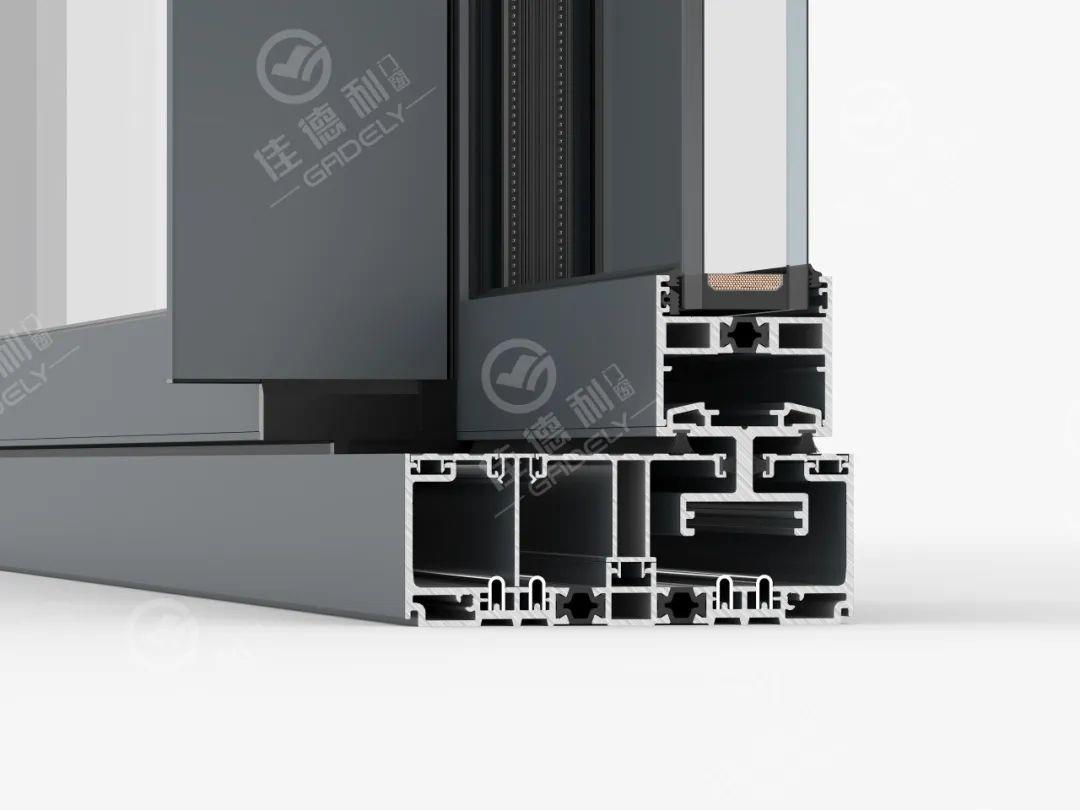

The track adopts revolutionary linear rail technology. The lower part of the door leaf and the track structure are newly improved. The lower part and the cavity track form an efficient water barrier, which completely changes the route of rainwater seeping into the room, greatly reducing the chance of rainwater penetrating into the room through the track. In the open type of traditional track, rainwater can easily enter the indoor side by its own weight after passing through the guide rail. However, after changing to linear track, outdoor rainwater enters the track cavity from above and is discharged to the outside through the drainage hole. If the rainwater in the track cavity has to pass through To enter the room through the gap between the track and the arm under the door leaf, it requires a lot of wind pressure and overcomes its own gravity. This situation is extremely difficult to happen, so the weatherproofing is stronger.

The linear rail not only has good performance, but its flat appearance is also more beautiful and fashionable, visually comfortable, and does not kick when entering or exiting.

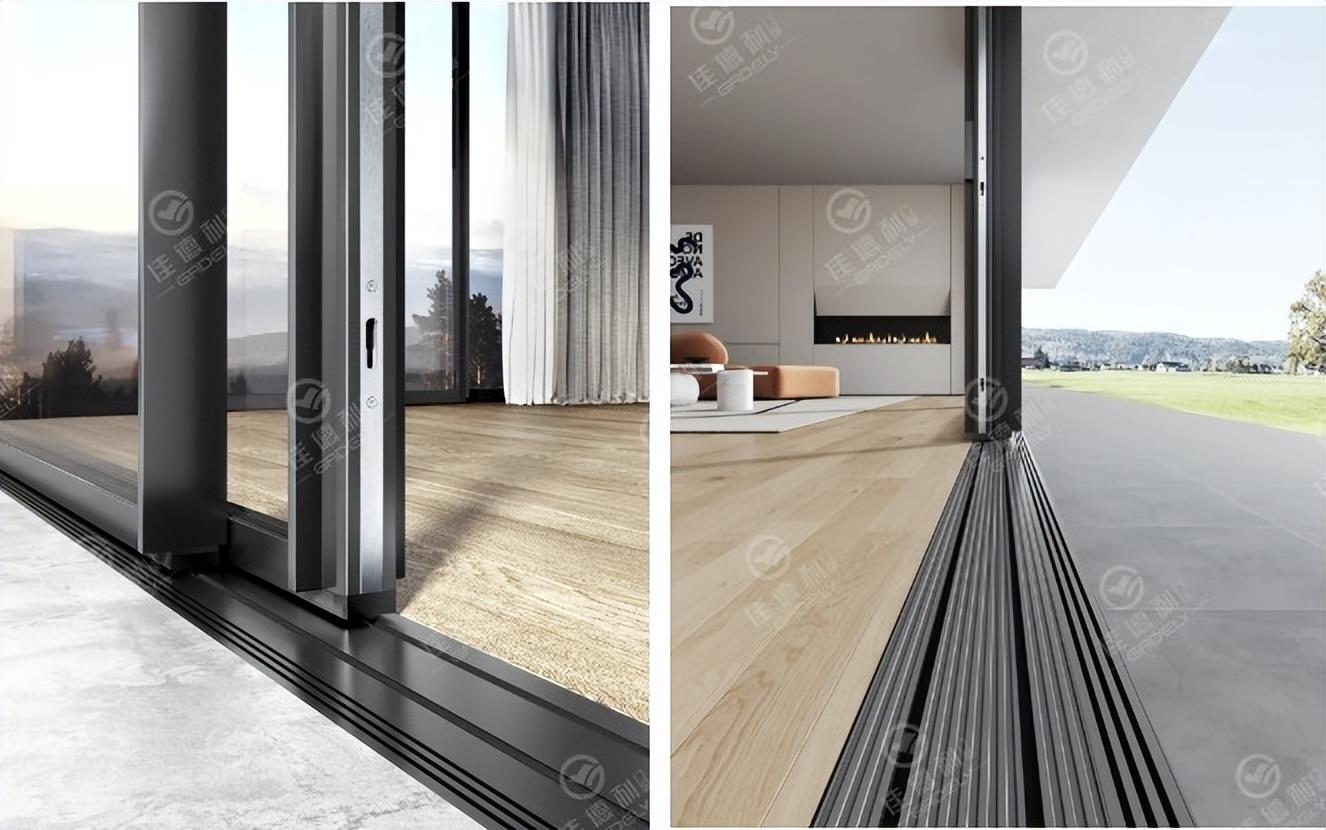

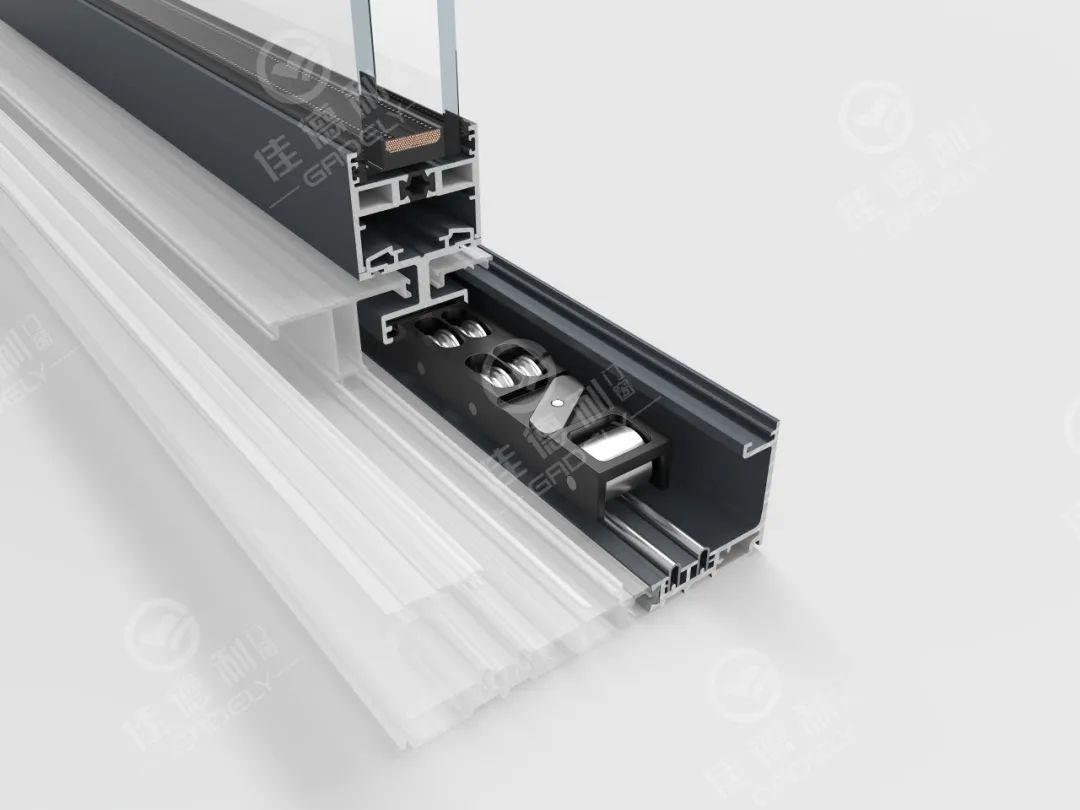

——▲Linear track

Of course, regular standard track selection is also available↑↑

2. High-density hooks and efficient sealing

The hooks of traditional sliding doors are often the weak point of sealing When mid- and high-rise buildings face strong typhoons, the sealing effect of simple rubber strips and tops alone is not good. The hooks of Jiadeli ES138PD panoramic floating sliding doors are also specially designed.

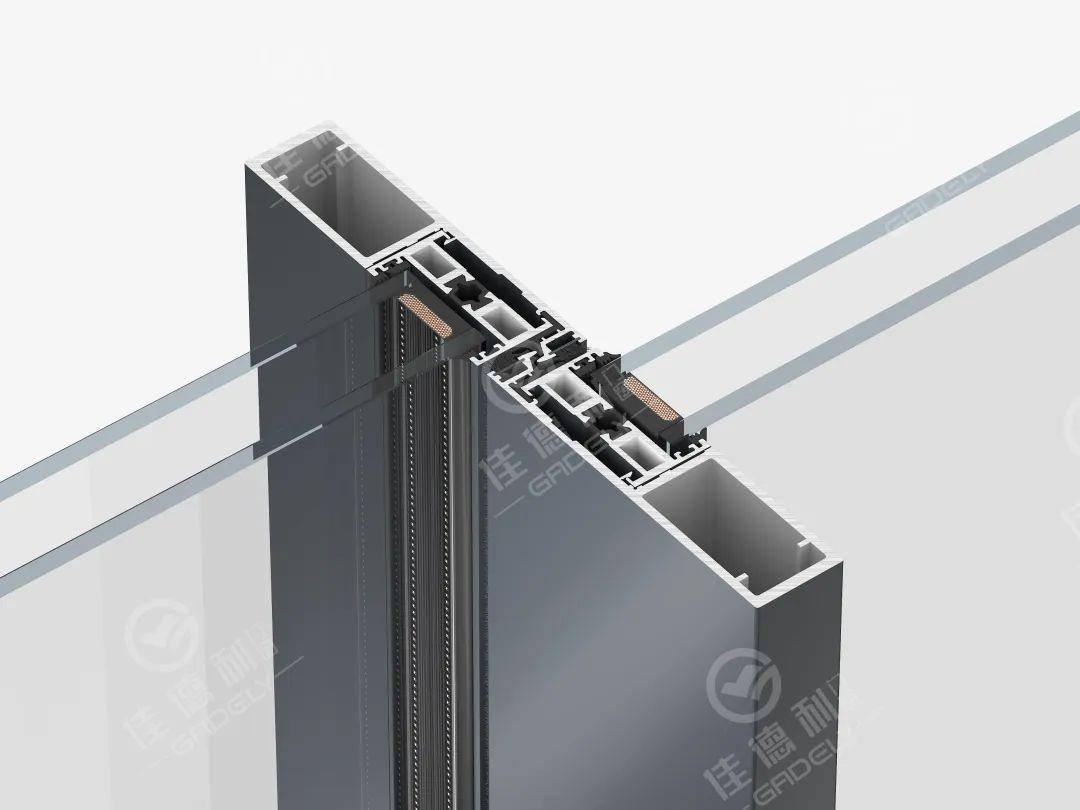

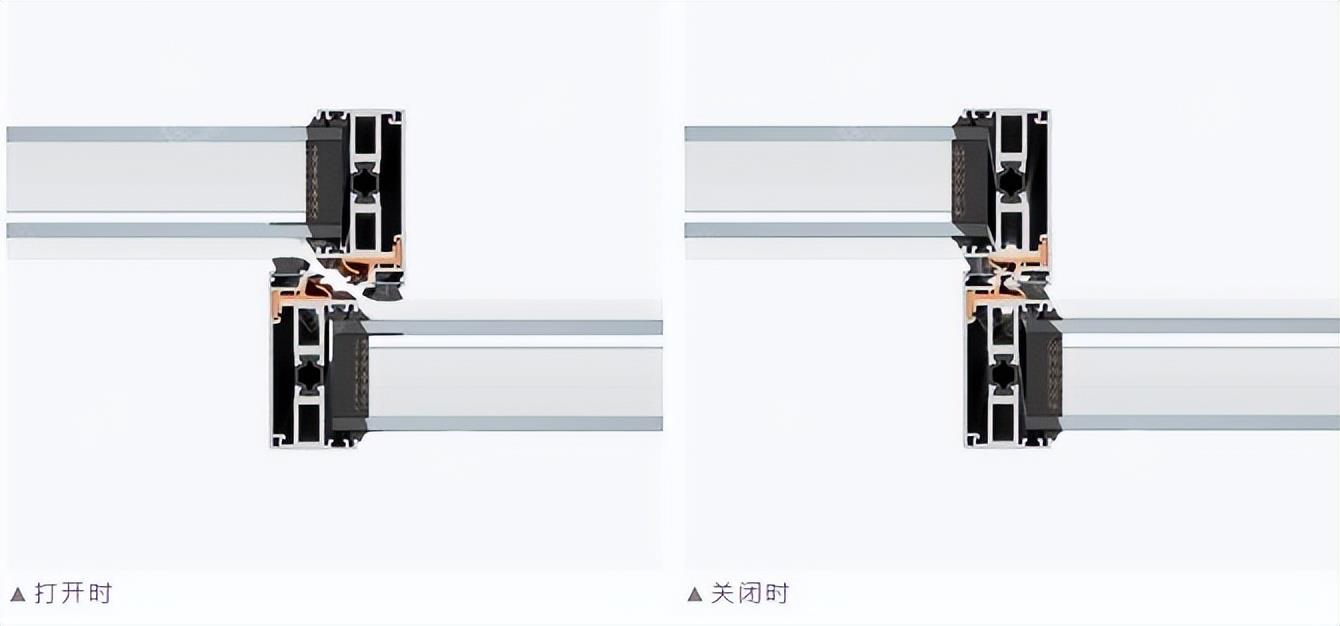

The slender internal sealing solution of the hook is composed of completely insulated soft and hard composite spacers and multiple top strips. The spacers are made of new materials and are anti-collision. , separated With the three-in-one properties of heat and sealant strips, this novel design ensures a tight fit between the hook and stile. After the door leaf is closed, the Z-shaped interlocking structure ensures the thermal and sealing capabilities of the hook and stile within an extremely narrow viewing surface of 32mm.

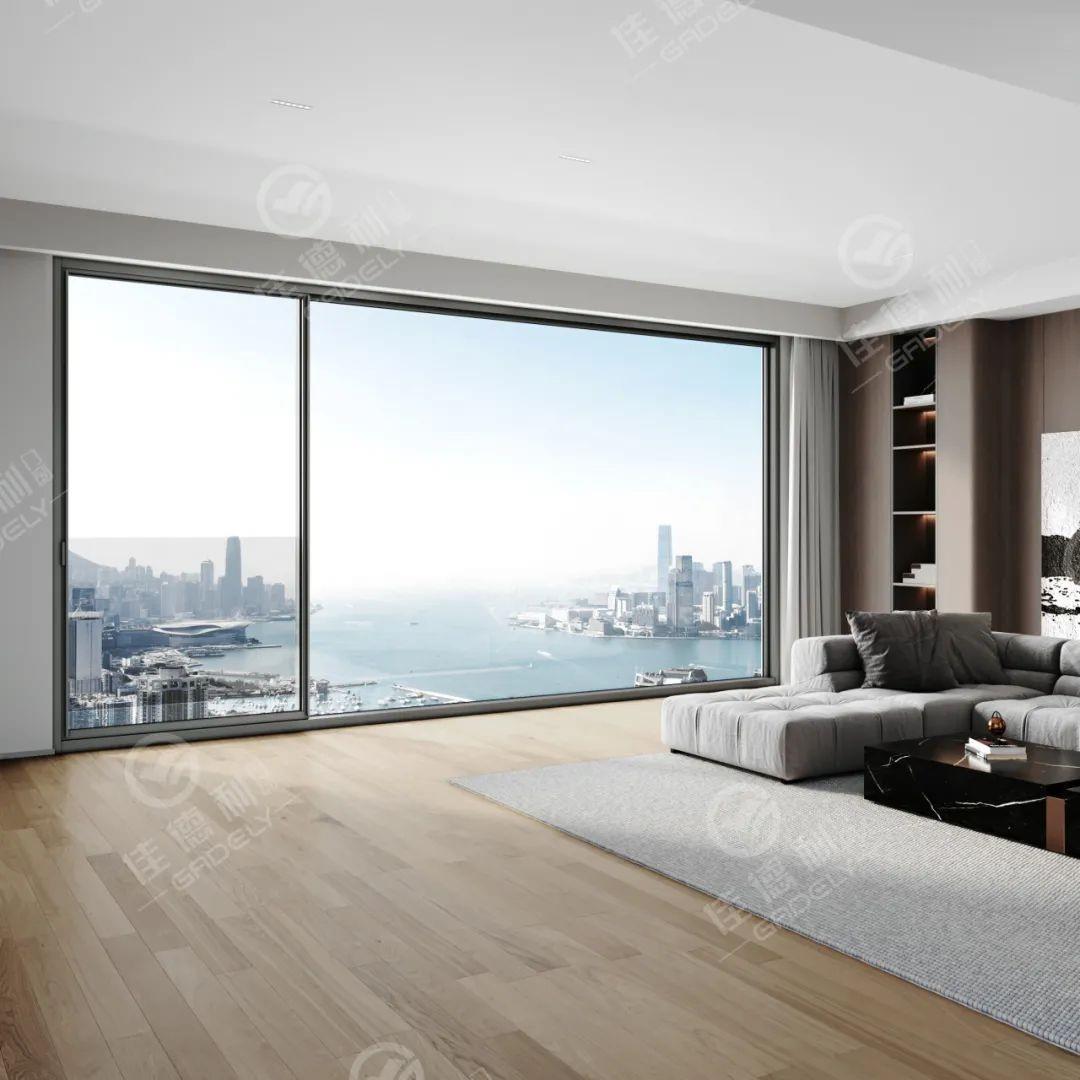

3. Ultra-high load-bearing, panoramic transparency

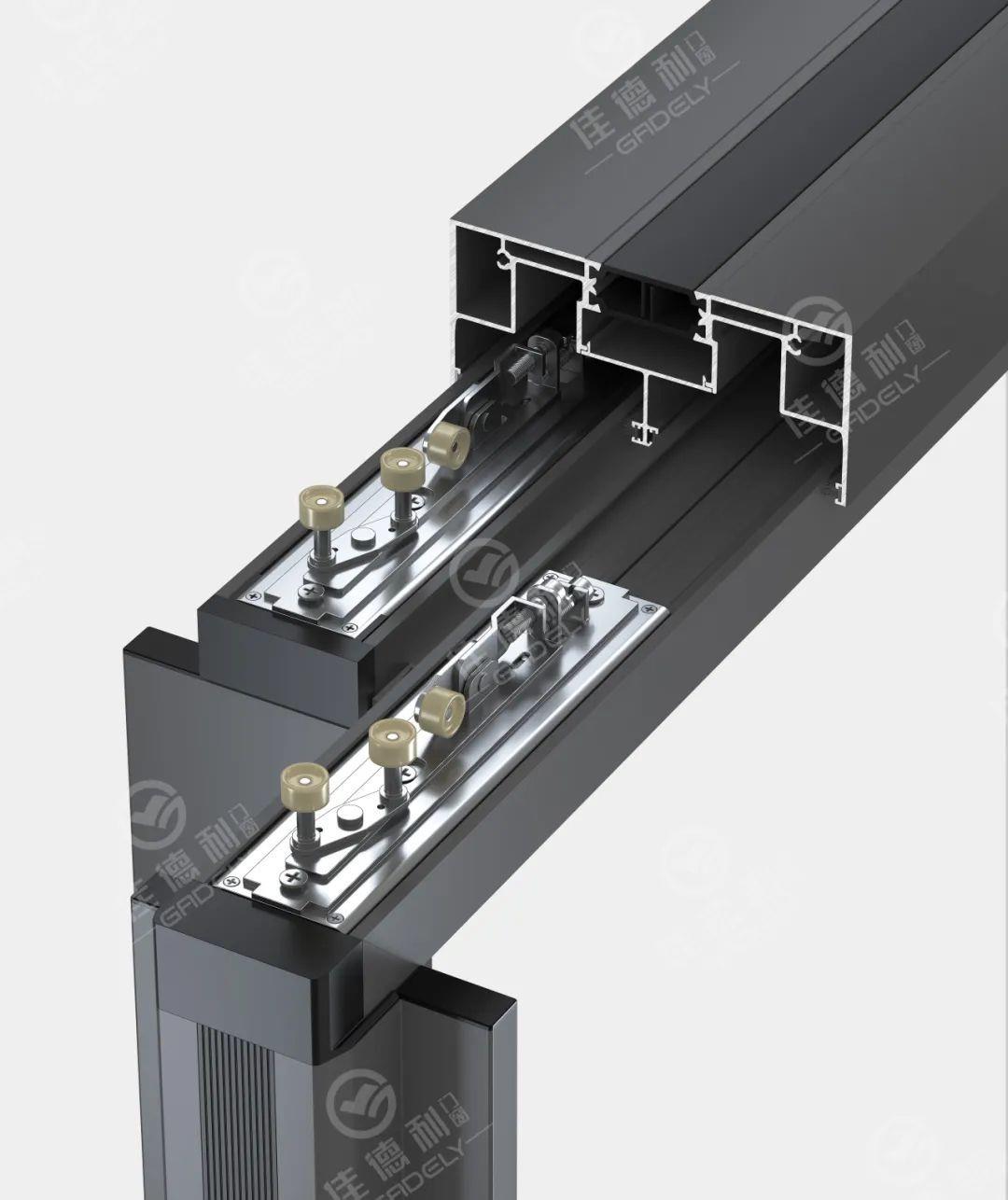

Reducing the number of door leaves can reduce the occlusion of aluminum. This results in a wider view and a more comfortable space experience, but this will double the weight of the door leaf, making it difficult for traditional monorail pulleys to handle. Jiadeli ES138PD panoramic floating sliding door uses a clamped pulley set. +Double stainless steel rail solution greatly improves the load-bearing capacity, and the single door is the mostThe maximum weight can be up to 1000kg, thus achieving super large door leaf sliding.

4. High wind pressure resistance, safe and reliable

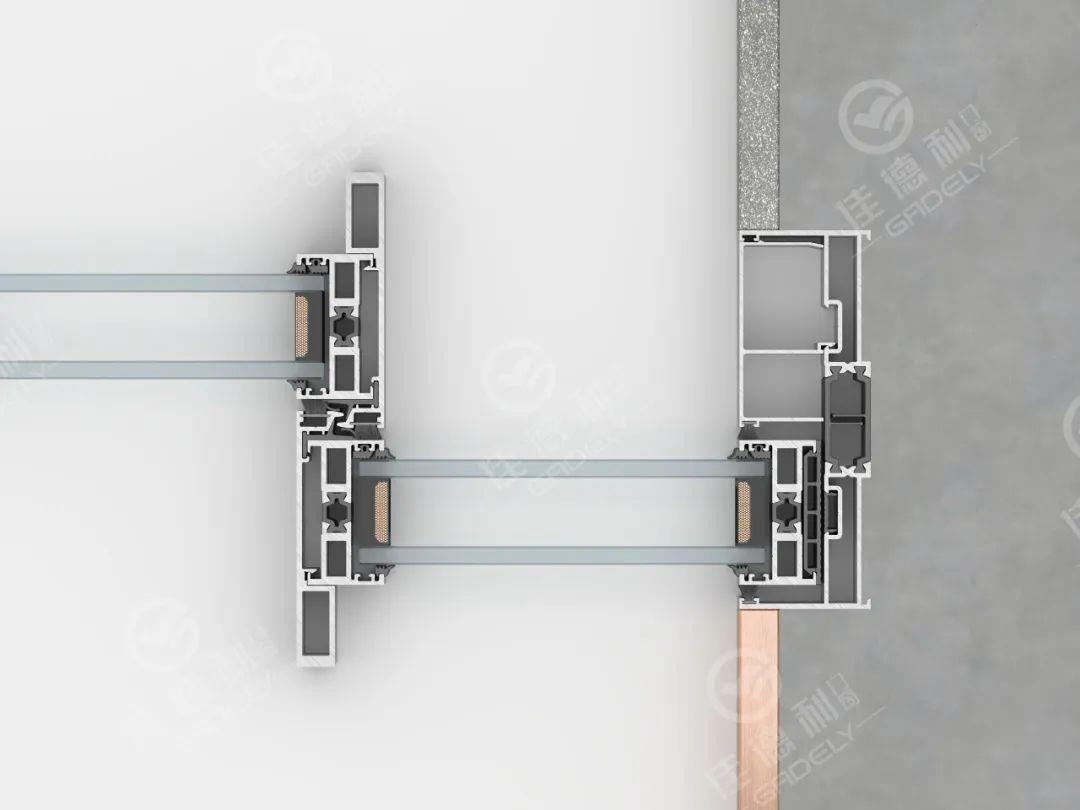

Although the hook is narrow, not only the wall thickness increases , and the front and rear depth dimensions are increased, the light quality is also strengthened, and the overall strength is enhanced. The upper rail is equipped with an anti-typhoon top wheel to prevent shaking and jumping. The lower rail will not derail due to the limitations of the wire rail cavity, which greatly improves the ability of doors and windows to resist typhoons and blow down.

5. Satisfy a variety of combinations and scenarios

Jia Deli ES138PD panoramic floating sliding door also realizes multiple Various scenarios: such as one fixed and one movable, multiple fixed and one movable, three-track and multiple-leaf windows with screens, etc. However, traditional sliding doors are difficult to combine with fixed glass. In addition, there are special extended functions: bifurcated fans and corner opening fans. , motor drive technology to meet special needs

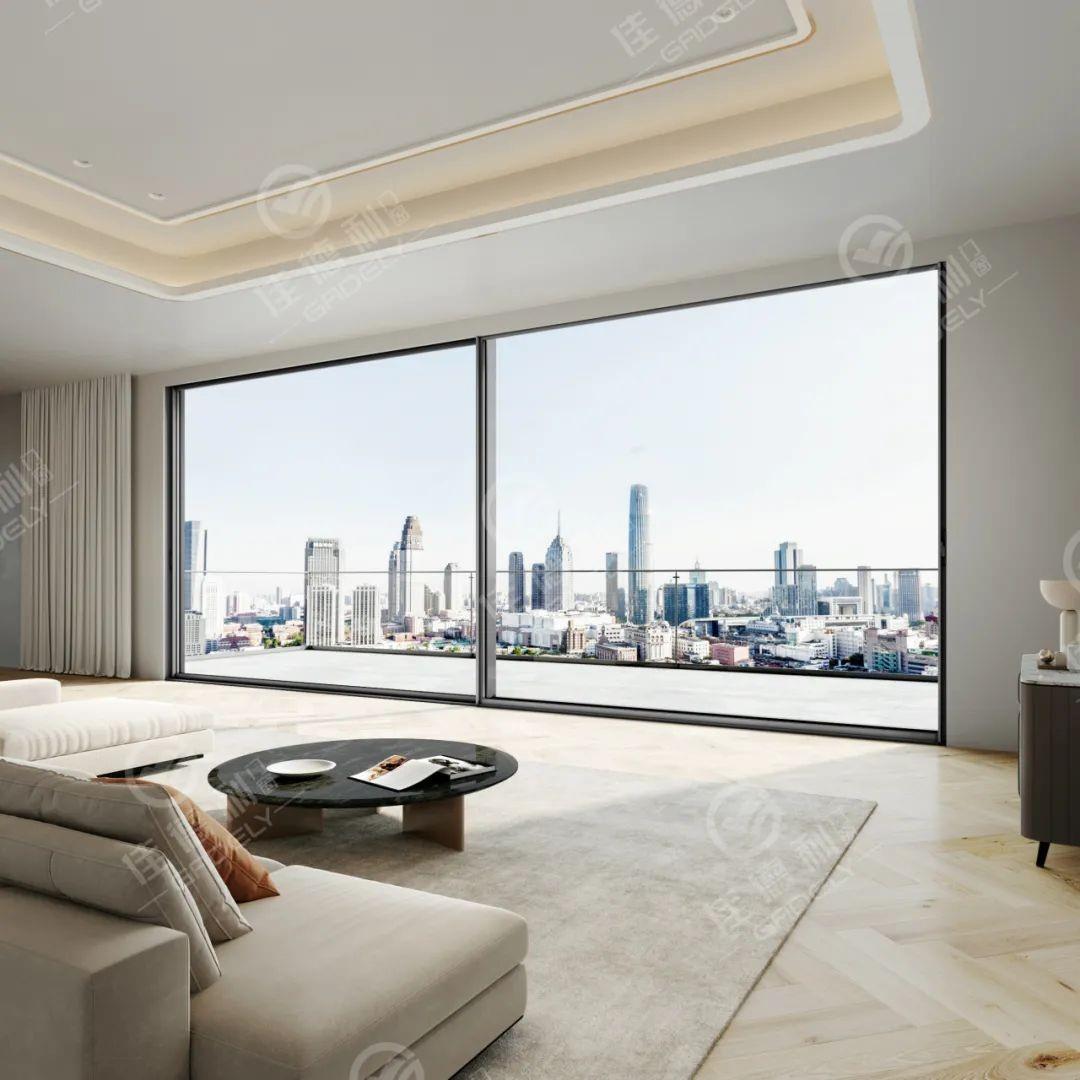

Jia Deli ES138PD panoramic suspended sliding door solves the landscape and performance requirements of oversized door leaves on mid-to-high-rise balconies. It is both safe and has better landscape and lighting effects, ensuring A great work and a fashionable choice.
